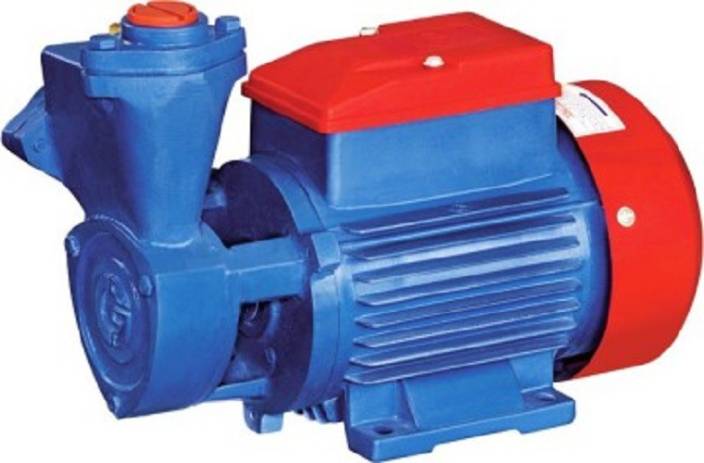

AQUA SERIES – SELF PRIMIING MONOSET PUMP:

Features :

1. Gun metal casings and gun metal impeller – No corrosion
2. Stainless steel shaft – No corrosion
3. High quality and long life mechanical seal
4. Unique motor design-capacitor start and run (PSC) type eliminating centrifugal switch.
5. Suitable for wide voltage operation – 160 to 240 V
6. Fitted with terminal block,Compact design
7. Self priming upto 8.0 metres at mean sea level

Applications:

1. Residential Bungalows, Flats, Hotels, Hospitals, Laundries, Clubs, etc
2. Gardening and Small Plants,Lawn Sprinklers,Small farms
3. Booster applications,Car washing,Ornamental Fountains
4. Water circulation in Solar Heater Systems.

FLOWMAX SERIES :

Features : Stainless steel shaft – No corrosion. High quality and long life mechanical seal.Unique motor design-capacitor start and run (PSC) type eliminating centrifugal switch. Suitable for wide voltage operation – 160 to 240 V. Fitted with terminal block.Self priming upto 3.0 metres at mean sea level. Compact design.Light in weight – Portable.

Applications:

1. Residential Bungalows, Flats, Hotels, Hospitals, Laundries, Clubs, etc
2. Gardening and Small Plants.
3. Lawn Sprinklers. Booster applications.
4. Small farms. Car washing.
5. Water circulation in Solar Heater Systems.Ornamental Fountains.

MBG-SERIES :

Features:

1. Monoset construction. High quality and long life Mechanical seal.
2. Totally Enclosed Fan Cooled motor for better safety.
3. Unique Motor design-Capacitor Start and Run (PSC) type eliminating centrifugal switch Graded cast iron motor body.

Applications:

1. Bungalows, Buildings, Flats, Hotels, Garages, Laundries and Industries.
2. Car washing. Booster application. Small farms.
3. Lawn sprinklers. Ornamental Fountains. Auxiliary equipment for machinery.
4. Water circulation in solar heater systems.

Standards Specifications:

• Range : 0.37 kW to 1.5 kW (0.5 to 2.0 HP).
• Supply : 225 Volts, 1 Phase 50 Hz, AC.
• Pipe size : 25 x 25 mm to 80 x 80 mm.
• Total head : Upto 33 metres.
• Capacity : Upto 930 LPM.
• Rotation : Clockwise as viewed from motor end.
• Operating temperature : Suitable upto 65°C water.

DM-SERIES :

Standard Specification :

• Range : 0.37 kW to 1.1 kW (0.5 HP to 1.5 HP).
• Supply : 225 Volts for 1 phase and 415 Volts for 3 phase; 50Hz, AC.
•  Pipe Size : 25 x 25 mm.
• Total Head : Upto 57 etres.
• Capacity : Upto 2920 LPH.
• Liquid : Clear water
• Rotation : Clockwise as viewed from motor end.
• Operating Temperature : Suitable upto 65°C Water.

DMB-SERIES :

Standards Specifications:

• Range :0.18 kW to 1.5 kW (0.25 to 2.0 HP).
• Supply : 225 Volts for 1 phase and 415 Volts for 3 phase ; 50Hz, AC.
• Pipe Size :25 x 25 mm and 40 x 40 mm.
• Total Head : upto 45 metres.
• Capacity : Upto 8000 LPH.
• Liquid : Clear water
• Rotation : Clockwise as viewed from motor end.
• Operating Temperature : Suitable upto 65°C water.

Self Priming Monoset Pump – ‘CMB’ Series :

Standard Specifications :

• Range : 0.37 to 0.75 kW (0.5 to 1.0 HP)
• Pipe Size :25 x 25 mm
• Speed : 1500 RPM (Syn.)
• Total Head : Upto 39 metres
• Capacity : Upto 4920 LPH
• Liquid : Clear water
• Rotation : Clockwise as viewed from motor end.
• Motor : TEFC with class ‘B’ insulation suitable for 1 Ph, 220V, 50 Hz supply.

Centrifugal Jet Pump :

Single Stage Centrifugal Jet Pump Two Stage Centrifugal Jet Pump Multi Stage Centrifugal Jet Pump ‘Shallow Well’ Jet Pump – SWJ.
Applications : Residential bunglows, buildings and hotels. Lawn sprinklers. Industries. Car washing, garages. Small farms.
Standards Specifications:

• Range : 0.37 kW to 2.2 kW (0.5 to 3.0 HP).
• Borewell size : Suitable for 50 to 125 mm or bigger borewell.
• Suction Lift : Upto 66 Metres DLWL (Jet Setting Depth).
• Type : Twin and Packer type design.
• Installation : Vertical or Horizontal mounting of Monoset Pump.
• Liquid : Clear water.
• Rotation : Clockwise when viewed from motor end.

Openwell Submersible Pumpset (SM & OS) :

Features :

1. Suitable for operation under submerged condition in water.
2. Specially designed to withstand wide voltage fluctuations in 1Ph as well as 3Ph.
3. Provided with strainer in S. S.
4. Suitable for applications where wide water level fluctuations take place in suction side.
5. All internal parts of motor are specially coated with primer to prevent rusting for longer life.
6. All 1Ph pumpsets are supplied with 10 metres PVC insulated cable and with Control Panel and all 3 Ph pumpsets are supplied with 5 metres PVC insulated cable.

Applications : Used for water supply where there is a wide fluctuation in water level in suction tank or water supply source.

• Irrigation,Small farms,Gardens
• Bungalows, Multi storied Buildings
• Domestic and Community water supply

Standard Specifications :

• Range :- 0.37 to 7.5 kW (0.5 to 10.0 HP)
• Pipe Size :- 25 x 25 to 100 x 100 mm
• Speed :- 3000 RPM (Syn.)
• Total Head :- Up to 57 Meters
• Capacity :- Up to 1830 LPM
• Liquid :- Clear water
• Rotation :- Clockwise when viewed from motor end
• Motor :- Totally enclosed water filled squirrel cage induction motor suitable for 225V/1 Ph and 415V/3 Ph, 50Hz, AC supply.
