Benefits :
- Contactor control with 24V control voltage (with internal tri-state signal transmission)
- An operating limit switch for the highest and lowest hook position for reliable switch-off of the chain hoist in the limit positions
- An elapsed operating time counter that can be read from the outside
- Two standard hoist speeds as the main and creep lifting speeds
- The speed-monitored braking and clutch principle provides for a high level of safety, reliability and a long service life
- Gearbox, brake and slipping clutch are maintenance-free for up to 10 years
- For service purposes, the operating parameters can be read out from the chain hoist control system via an optical display or wirelessly by means of the integrated infrared diagnostic interface
- All electric connections of the chain hoist are of plug-and-socket design
- A central service enclosure that provides direct access to all important plug-and-socket connections and simple chain lubrication
- Fast and simple replacement of the chain drive without having to remove the motor or gear parts

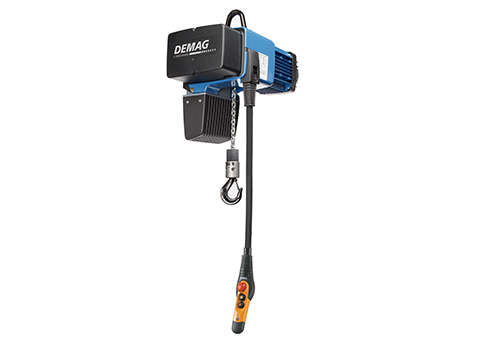

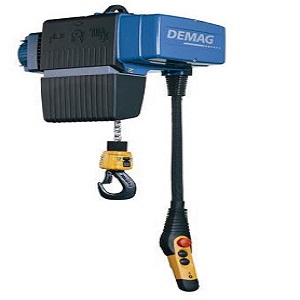

DC-COM Chain Hoist :
The quality basic unit is quick to install and very easy to service. It is the ideal solution for everyday needs in the load range up to 2,000 kg.
Benefits :
- Contactor control with 24V control voltage (with internal tri-state signal transmission)
- An elapsed operating time counter
- Two standard hoist speeds as the main and creep lifting speeds
- The speed-monitored braking and clutch principle provides for a high level of safety, reliability and a long service life
- Gearbox, brake and slipping clutch are maintenance-free for up to 5 years
- For service purposes, the operating parameters can be read out from the chain hoist control system via an optical display or wirelessly by means of the integrated infrared diagnostic interface
- All electric connections of the chain hoist are of plug-and-socket design
- Fast and simple replacement of the chain drive without having to remove the motor or gear parts

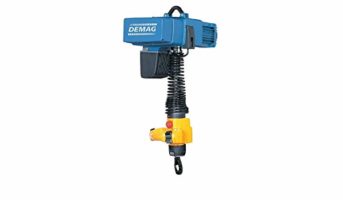

DCM-Pro/DCMS-Pro Manulift :
The DCM-Pro Manulift was developed for simple single-handed operation. Thanks to the control unit which is rigidly connected to the load handling attachment, the operator only needs one hand to operate the hoist and guide the load.
Benefits :
- Easy & Quickly load handling
- It can be operated by only one hand
- Variety of load handing attachments possible
- Versatile adaptability
- A quick-change coupling enables the various Manulift load handling attachments to be changed with ease.

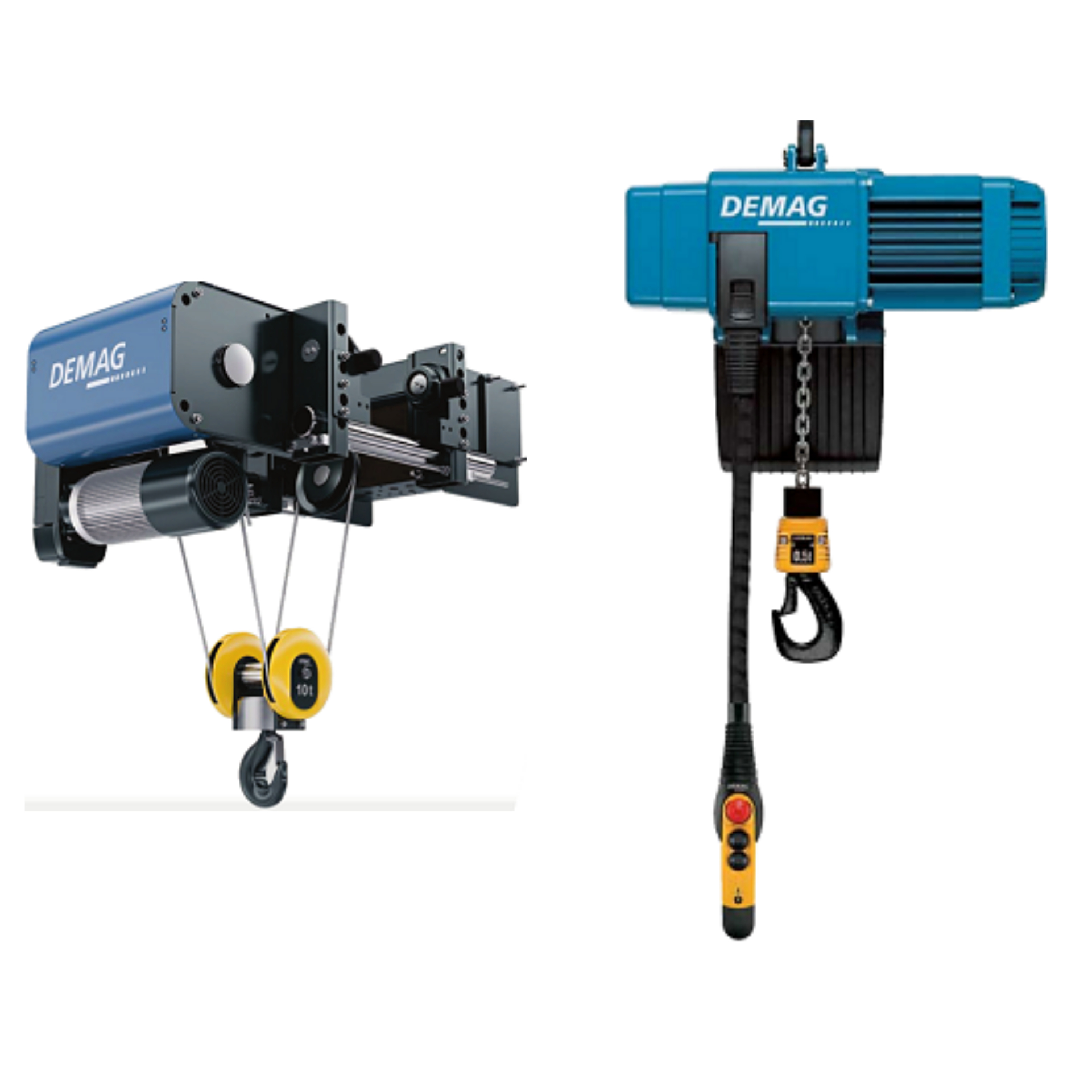

DBR rope hoist :
The second type of in Hoist is DBR rope hoist which is ideally suited to small workshops as well as large industrial companies and can also be installed on existing girders.
Benefits :
- Modern, lightweight and compact design
- Optimized load capacities from 2 t up to 40 t\
- Versatile trolley for a wide range of monorail profiles and crane girders
- Favourable headroom dimensions
- Two-speed control with smooth starting and stopping
- Express spare parts service
